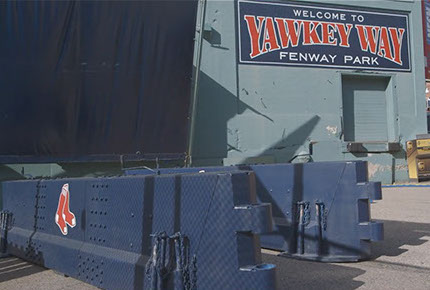

BARRIERGUARD 800®
BarrierGuard 800® is a lightweight, energy absorbing, longitudinal steel barrier for temporary or permanent installation. Positive protection allows your workers to focus on their jobs instead of worrying about their safety.
NCHRP 350 Approved TL-4
BarrierGuard 800® has been tested to meet the highest performance standards in the world. Approved by most State DOT’s and the Federal Highway Administration at TL-4, BarrierGuard 800® will save you time and money.
Benefits
Size Specifications
<
>
Test Ratings
There are currently three SecureGuard systems available to suit your level of protection and cost requirements:
SecureGuard® 20
SecureGuard® 30
SecureGuard® 50

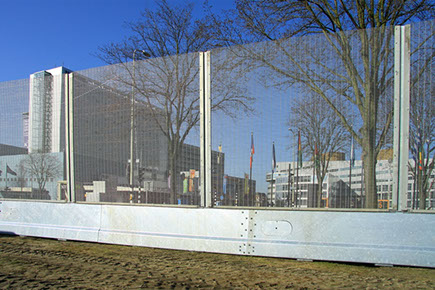

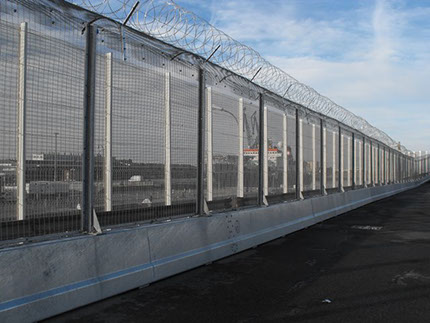

SECUREGUARD®
Anti-terrorist perimeter protection

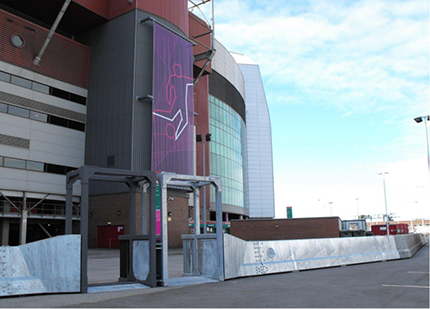

Protect airports, stadiums, entertainment/sporting events, banks, embassies, museums, dams, mines, border check points and military bases.
Size Specs
<
>
SecureGuard® is an end to end crash tested high performance perimeter protection system. Designed to prevent vehicles or pedestrians from penetrating high security areas. Tested and approved to US DOS K4, K8 and K12 standards, along with PAS 68:2010 (16,500 lbs. truck, impact angle of 90 degrees at speeds of 20, 30 and 50 mph), SecureGuard® has proven to withstand multiple impacts while maintaining a secure perimeter.

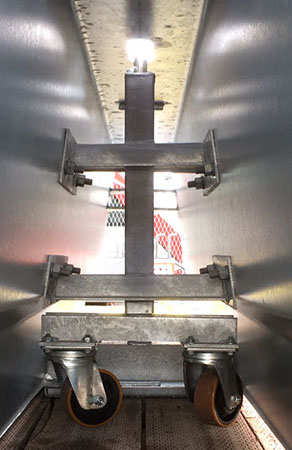

BARRIERGUARD 800® WHEELED SYSTEM
BarrierGuard 800® - the temporary barrier of choice for many contractors, now offers the option of wheels, for added mobility. The BarrierGuard800® wheeled system comprised of 20ft or 40ft sections contains individual wheel sets and is connected by the patented “Quick Connect”. Approved at FHWA TL-3 and TL-4 it is the most cost effective wheeled barrier system currently available.
The BarrierGuard 800® wheeled system is installed as a normal barrier but can be split into sections which can then be moved laterally or longitudinally on the roadway to a new location without the need for lifting equipment.
Once installed, a barrier line can be split into shorter sections by raising the barrier (lowering the wheels). This disconnects the barrier which then can be moved either by manpower or with the assistance of an appropriate towing vehicle to a new location. The barrier sections are then re-connected and anchored to provide the required length of protection.
The BarrierGuard 800® wheeled system is particularly suited to repetitive regular maintenance operations where barrier lengths of 600ft - 1,500ft need to be moved for short distances. The 20ft/40ft barrier sections can be delivered on smaller vehicles and deployed quickly into areas where access may be limited such as tunnels or underpasses. It can be used where plant or emergency vehicle access may be required, or where installation may be made hazardous due to overhead obstructions, as it can be offloaded and wheeled into its final position
Instant Mobility
It takes less than one minute to raise or lower the wheels on a section of barrier. This allows 20ft or 40ft sections to be moved easily by 2 men without the need for additional lifting equipment.
Save time and money while providing positive protection for workers in a highly mobile environment.
Benefits
RADIUS & CORNER PIECES
BarrierGuard 800® offers the largest selection of radius pieces of any steel barrier. With the use of 5º,10º, or Universal Radius sections, any application is feasible for temporary or permanent use.
Whether it be a 90º corner, or a full 120 foot radius, BarrierGuard 800® ensures the most versatile, and adaptable options, that can be easily inserted anywhere along the barrier line. A radius less than 120 feet is feasible, which is far less than any other concrete or steel barrier can achieve on the market today.
There is no job, nor stretch of road that can't be accommodated by the many options and accessories that are available for BarrierGuard 800®, giving you, and your employees, maximum protection and ease of mind.
90º universal radius section
5º & 10º radius sections
Permanent Installation

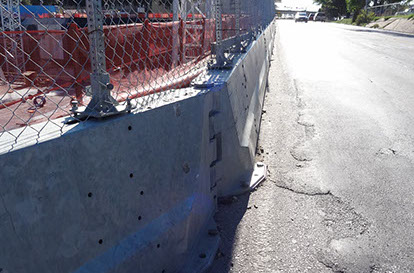

temporary Installation
universal radius
<
>
