NCHRP 350 Approved TL-4

BarrierGuard 800® has been tested to meet the highest performance standards in the world. Approved by most State DOT’s and the Federal Highway Administration at TL-4, BarrierGuard 800® will save you time and money.

   Benefits

  • 600ft - 750ft per truckload
  • 1,000ft per hour installation
  • Limited anchoring
  • Rugged 20+ years life cycle

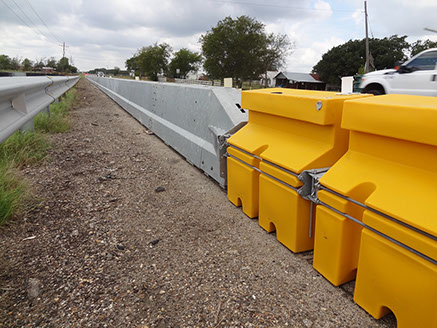

  • Transitions to all industry standard end treatments
  • Transitions to concrete and guardrail
  • Recyclable

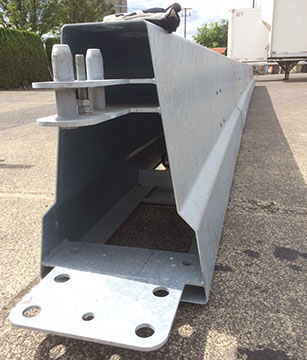

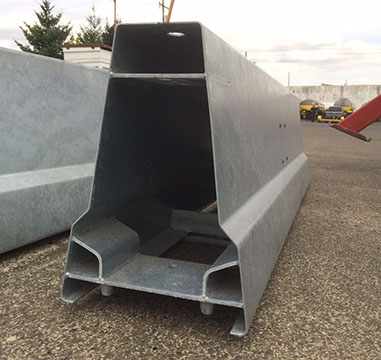

   Size Specifications

  • 60lbs per linear foot
  • 31½" (800mm) tall
  • 9" (228.6mm) wide at top
  • 21" (533.4mm) wide at bottom
  • 1¼" (31.75mm) clearance for drainage
  • ASTM 123 Galvanized for long product life
  • Available in 10, 20, 40 & 50ft sections

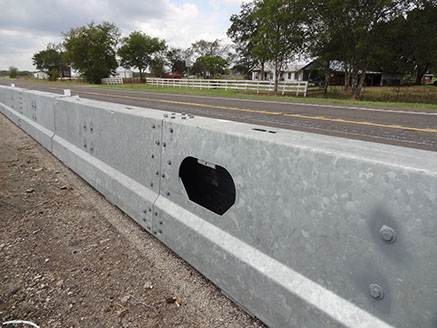

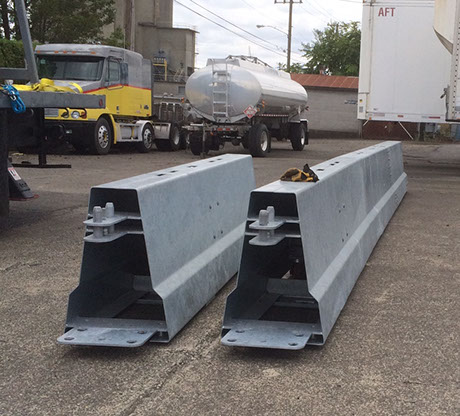

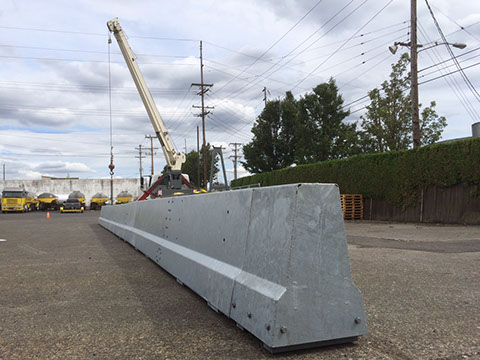

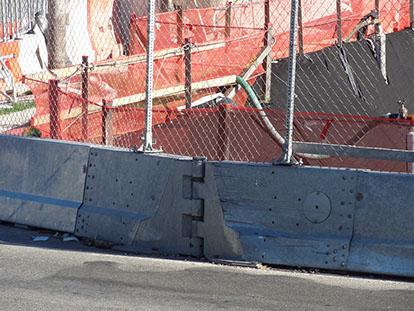

BarrierGuard 800® is a lightweight, energy absorbing, longitudinal steel barrier for temporary or permanent installation. Positive protection allows your workers to focus on their jobs instead of worrying about their safety.

FHWA TL-4 APPROVAL letter

BARRIERGUARD 800®

BARRIERGUARD 800® MDS

FHWA TL-3 APPROVAL letter

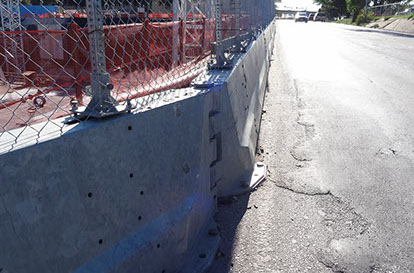

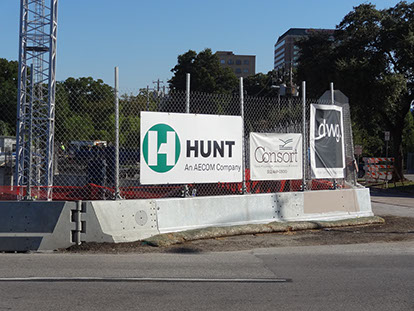

An alternative to portable concrete, the BarrierGuard 800® MDS is a safe, lightweight, FHWA TL-3 approved barrier.



Best performing steel barrier in the world!

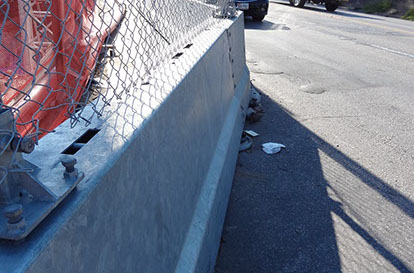

BarrierGuard 800® MDS when impacted at 62mph, 25 degrees, less than ONE INCH permanent deflection.

(Minimum Deflection System)

   Benefits

  • 360 degree turning
  • Mobile barriers that can be repositioned by 2 men

BarrierGuard 800® - the temporary barrier of choice for many contractors, now offers the option of wheels, for added mobility. The BarrierGuard800® wheeled system comprised of 20ft or 40ft sections contains individual wheel sets and is connected by the patented “Quick Connect”. Approved at FHWA TL-3 and TL-4 it is the most cost effective wheeled barrier system currently available.



The BarrierGuard 800® wheeled system is installed as a normal barrier but can be split into sections which can then be moved laterally or longitudinally on the roadway to a new location without the need for lifting equipment.



Once installed, a barrier line can be split into shorter sections by raising the barrier (lowering the wheels). This disconnects the barrier which then can be moved either by manpower or with the assistance of an appropriate towing vehicle to a new location. The barrier sections are then re-connected and anchored to provide the required length of protection.



The BarrierGuard 800® wheeled system is particularly suited to repetitive regular maintenance operations where barrier lengths of 600ft - 1,500ft need to be moved for short distances. The 20ft/40ft barrier sections can be delivered on smaller vehicles and deployed quickly into areas where access may be limited such as tunnels or underpasses. It can be used where plant or emergency vehicle access may be required, or where installation may be made hazardous due to overhead obstructions, as it can be offloaded and wheeled into its final position

Instant Mobility

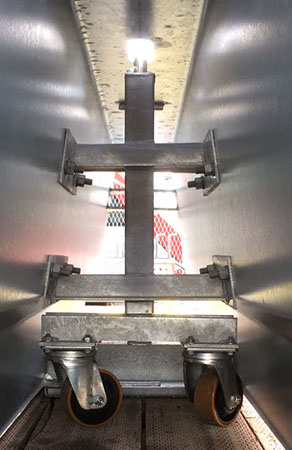

It takes less than one minute to raise or lower the wheels on a section of barrier. This allows 20ft or 40ft sections to be moved easily by 2 men without the need for additional lifting equipment.



Save time and money while providing positive protection for workers in a highly mobile environment.

BARRIERGUARD 800® WHEELED SYSTEM

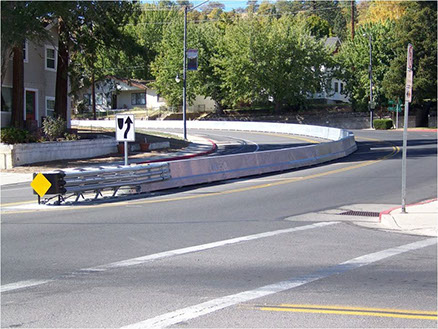

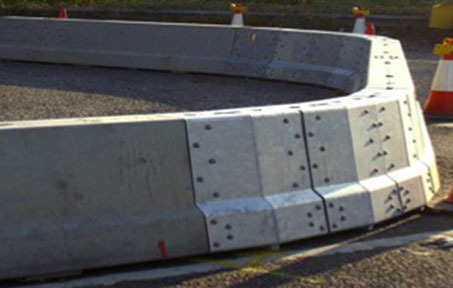

BarrierGuard 800® offers the largest selection of radius pieces of any steel barrier. With the use of 5º,10º, or Universal Radius sections, any application is feasible for temporary or permanent use.



Whether it be a 90º corner, or a full 120 foot radius, BarrierGuard 800 ensures the most versatile, and adaptable options, that can be easily inserted anywhere along the barrier line. A radius less than 120 feet is feasible, which is far less than any other concrete or steel barrier can achieve on the market today.



There is no job, nor stretch of road that can't be accommodated by the many options and accessories that are available for BarrierGuard 800, giving you, and your employees, maximum protection and ease of mind.

5º & 10º radius sections

90º universal radius section

RADIUS & CORNER PIECES
