We supply the latest security barrier technology available for permanent and temporary applications. Saving time, money and lives.



INSTALLATION DEMONSTRATION

the premier distributor of

WHY CHOOSE BARRIERGUARD®?

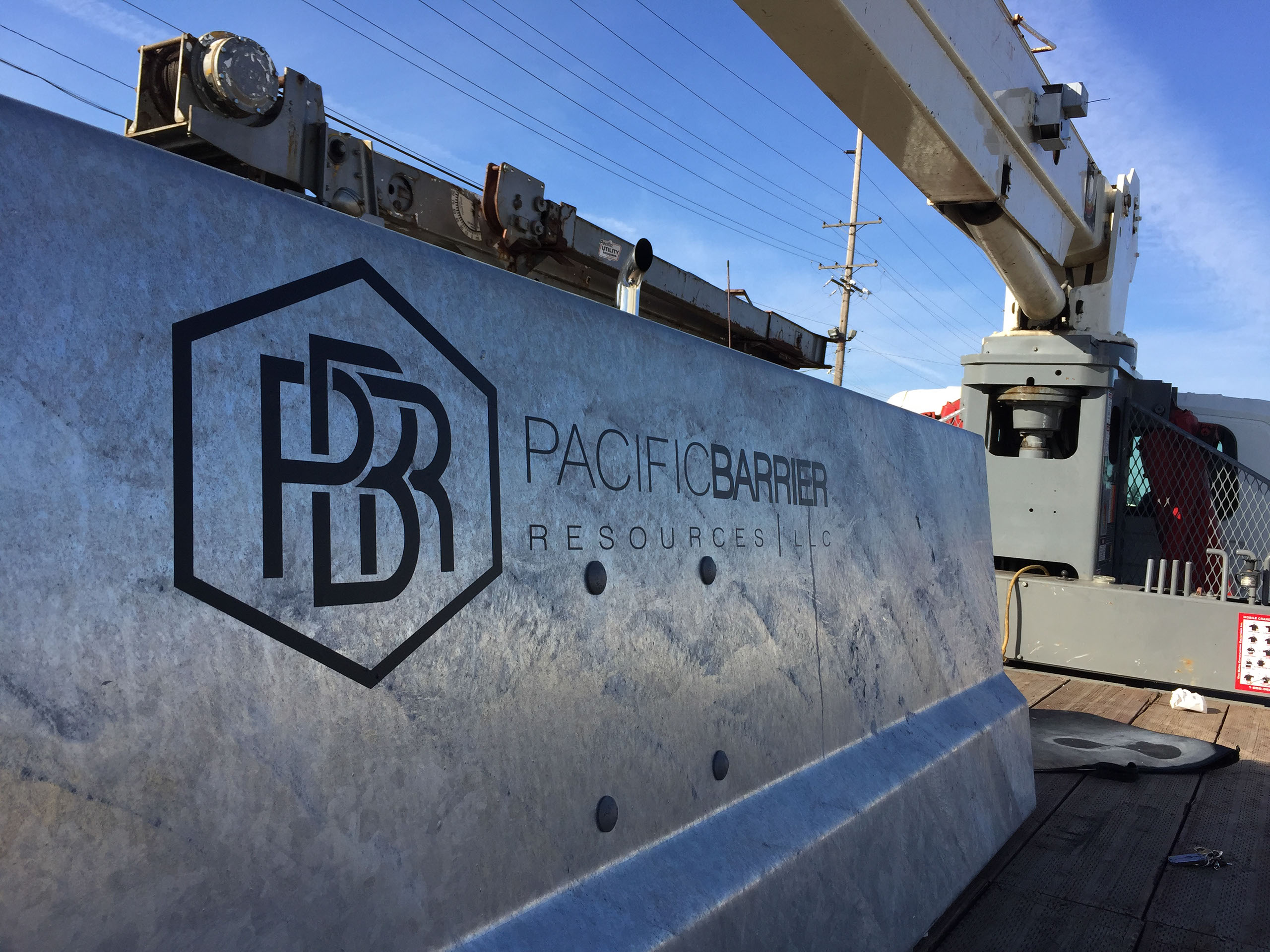

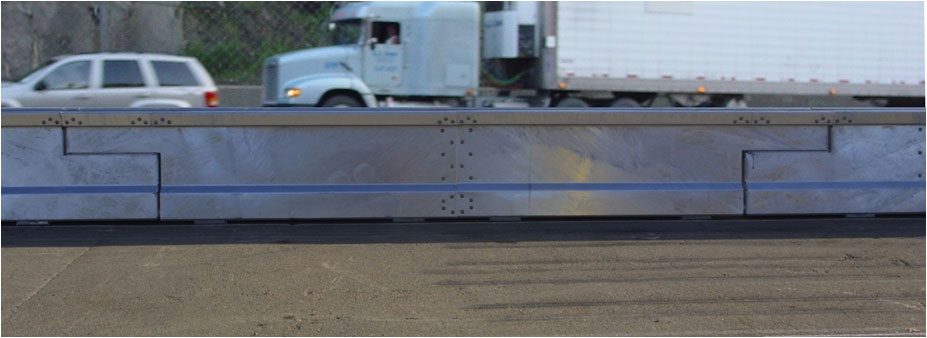

BarrierGuard 800® is a lightweight, energy absorbing, longitudinal steel barrier for temporary or permanent installation. Positive protection allows your workers to focus on their jobs instead of worrying about their safety.

BarrierGuard 800® has been tested to meet the highest performance standards in the world. Approved by most State DOT’s and the Federal Highway Administration at TL-4, BarrierGuard 800® will save you time and money.

  • 600ft - 750ft per truckload
  • 1,000ft per hour installation
  • Limited anchoring
  • Rugged 20+ years life cycle
  • Transitions to all industry standard end treatments
  • Transitions to concrete and guardrail
  • Recyclable



    Size Specifications



  • 60lbs per linear foot
  • 31½" (800mm) tall
  • 9" (228.6mm) wide at top
  • 21" (533.4mm) wide at bottom
  • 1¼" (31.75mm) clearance for drainage
  • ASTM 123 Galvanized for long product life
  • Available in 10, 20, 40 & 50ft sections

BENEFITS
